Easson Dro Digital Readout For Mill Lathe For Machine Tools
Packaging & Delivery
Single package size: 40x26x18 cm
Package Type: Carton box
Gross weight: 3.5 kgs
Delivery:
| Quantity | 1-10 | 11-50 | 51-100 | ＞100 |
| Est. Time ( days ) | 3 | 8 | 15 | To be negotiated |
Technical Specification
| Model | ES-8C |
| Axis | 3 Axis |
| Axis Display | 0.1μm, 0.5μm, 1μm, 5μm |
| Signal Input | A / B quadrature signal |
| Power Supply | 110 Voltage or 220 Voltage |
| Weight (kg) | 2 |
| Maximum input | 2 MB Hz |
| Operating temperature | 0℃ - 45℃ |
| Storage temperature | -40℃ - 55℃ |
| Relative humidity | ≤ 95% |
| Inputs | 2 or 3 optical linear encoders |
| Electromagnetic Compatibility | IEC61000-4-2 / GB / T 17799-2 IEC61000-4-4 / GB / T 17799-4 IEC61000-4-5 / GB / T 17799-5 |
EMC Testing equipment
To Make sure all Easson DRO products can be pass the standard EMC standard specification, we have a complete set of EMC test esd immunity tester.
Easson DRO have been to conforms to relevant standards for the electromagnetic compatibility ( EMC ) as the details below:
IEC61000-4-2 / GB / T 17799-2: Electrostatic discharge immunity ( Contact discharge 6000V, air discharge 8000V )
IEC61000-4-4 / GB / T 17799-4: Electrical fast transient burst immunity ( pulse amplitude 2000V )
IEC61000-4-5 / GB / T 17799-5: Lightning surge immunity ( Superrimposed pulse voltage peak 2000V )

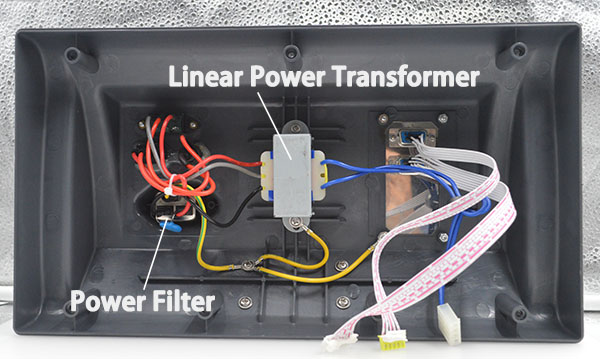

Easson Digital readout power supply use a linear power transformer and power filter, this can help our products pass by the noice immunity and the EMC.
To reduce the total heat generation inside the ES DRO in order to obtain long working life. An ultra low temperature rise transformer that construct with very high permeability icron core is used, which effectively bring temperature rise to only about 5℃.
Products Features
Digital Readout System
Basic parameter in the ES-8C is included as below:
| Centering (1/2) |
| Metric / inches Display (mm / Inch) |
| Absolute / incremental (ABS / INC) |
| Power off Memory (30 subdatum) |
| 199 subdatum |
| Reference Memory (REF) |
| Build in Calculator |
| Pitch Circle Diameter (PCD) |
| Line Hole Positioning (LHOLE) |
| Simple “R” Function |
| ARC machining |
| Linear Error Compensation |
| Non Linear Error Compensation |
| Z Axis Summation |
| Axis Speed Display |
| Inclined angle tool positioning |
| Power Failure Position Function ( Only work with Easson Absolute linear Scale) |
Connector interface
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| TTL Signal | --- | 0V | --- | GND | --- | A | 5V | B | R |
| Cable | --- | Orange | --- | Ground | --- | Yellow | | | |
